Short-Range Automated Defense System

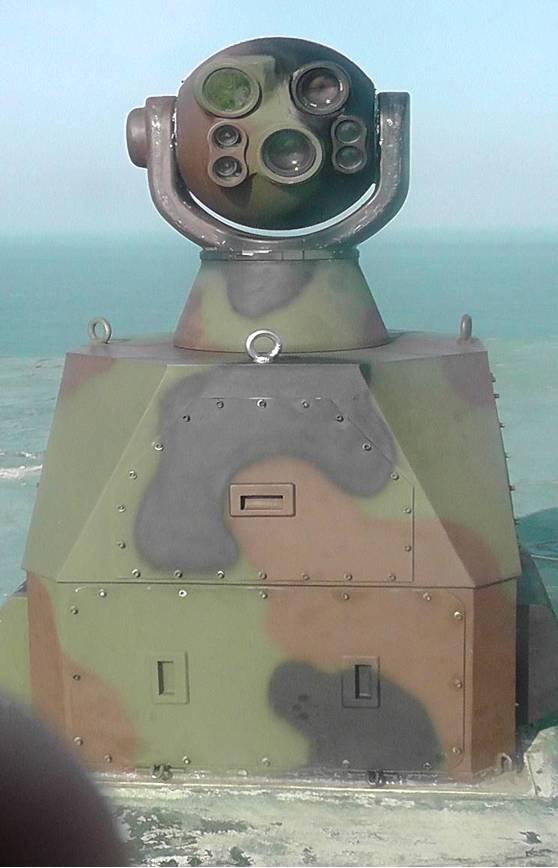

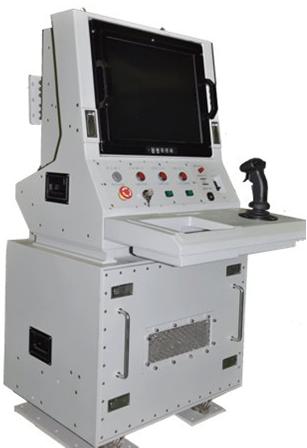

The short-range automated defense system integrates a 20mm machine gun and a 70mm rocket launcher into a single platform. Equipped with image recognition and an advanced fire control system, it features laser ranging, automatic tracking, and precision targeting capabilities. It delivers rapid, lethal, and precise firepower while minimizing personnel casualties, and significantly enhancing coastal defense and joint combat effectiveness.

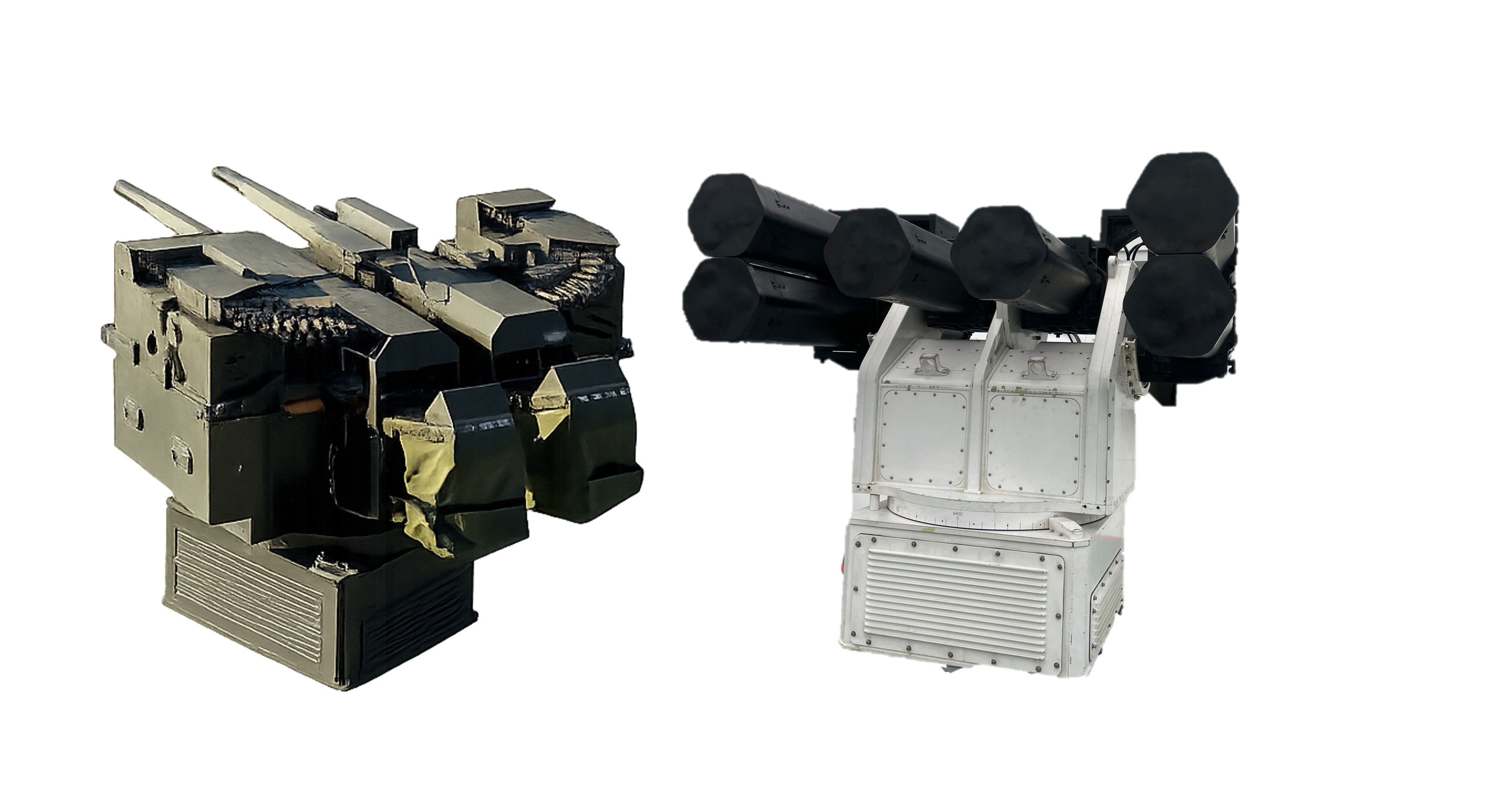

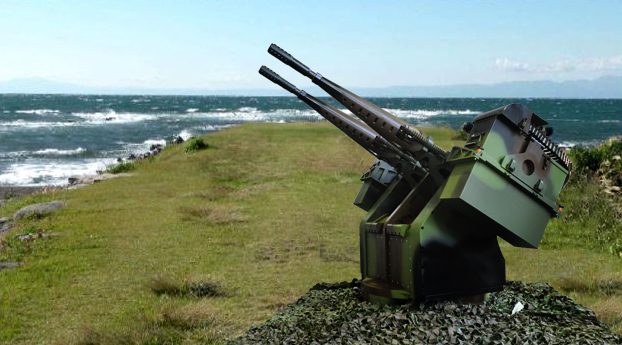

The 20mm machine gun adopts the T75 cannon, with 400 rounds and an effective range of 2,000 meters. It features an electro-optical tracking system with accuracy.
The turret rotates ±165° with an elevation range of -15° to +70°. It can be deployed on naval vessels and coastal defense positions.
The 70mm rocket launcher uses 2.75-inch rockets and a modular design, capable of carrying six pods with a total of 42 rockets. Its effective range reaches 8,000 meters and includes electro-optical guidance. The turret rotates ±165° with an elevation range of -15° to +50°,and a maximum firing rate of 50 rounds per second. It is capable of wide-area suppression against enemy personnel and lightly armored targets. It supports both high-explosive and non-lethal munitions for flexible operations.
