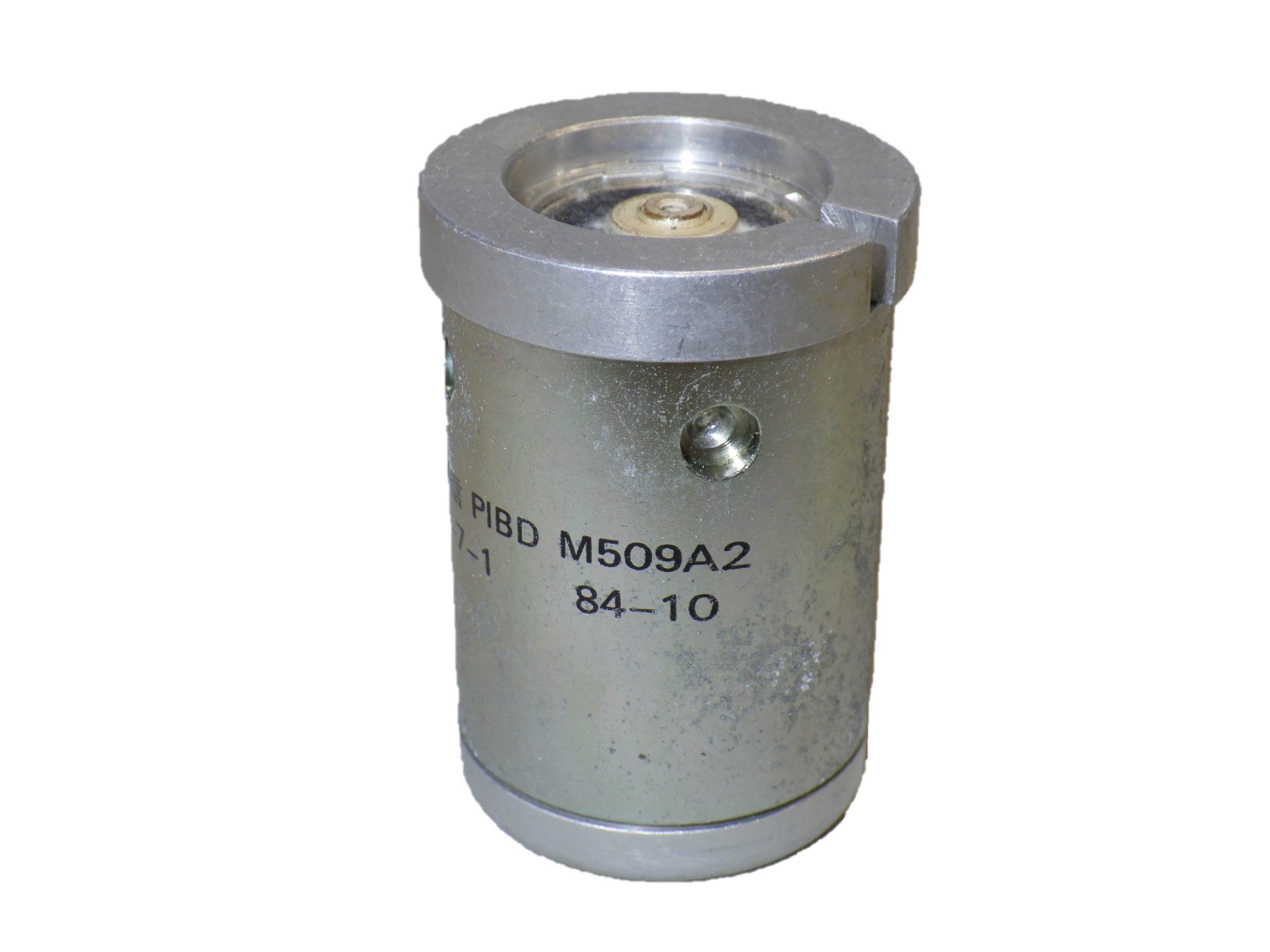

M509 Fuze
Product introduction
．Type：Impact fuze
．Introduction：The M509 is a point initiating, base detonating fuze, for use in fin-stabilized HEAT projectiles with a caliber of 76 mm to 120 mm.
．Specification
Weight：140.6 g
Length：49.8 mm
Diameter：34.3 mm
